METALL LÖSUNGEN

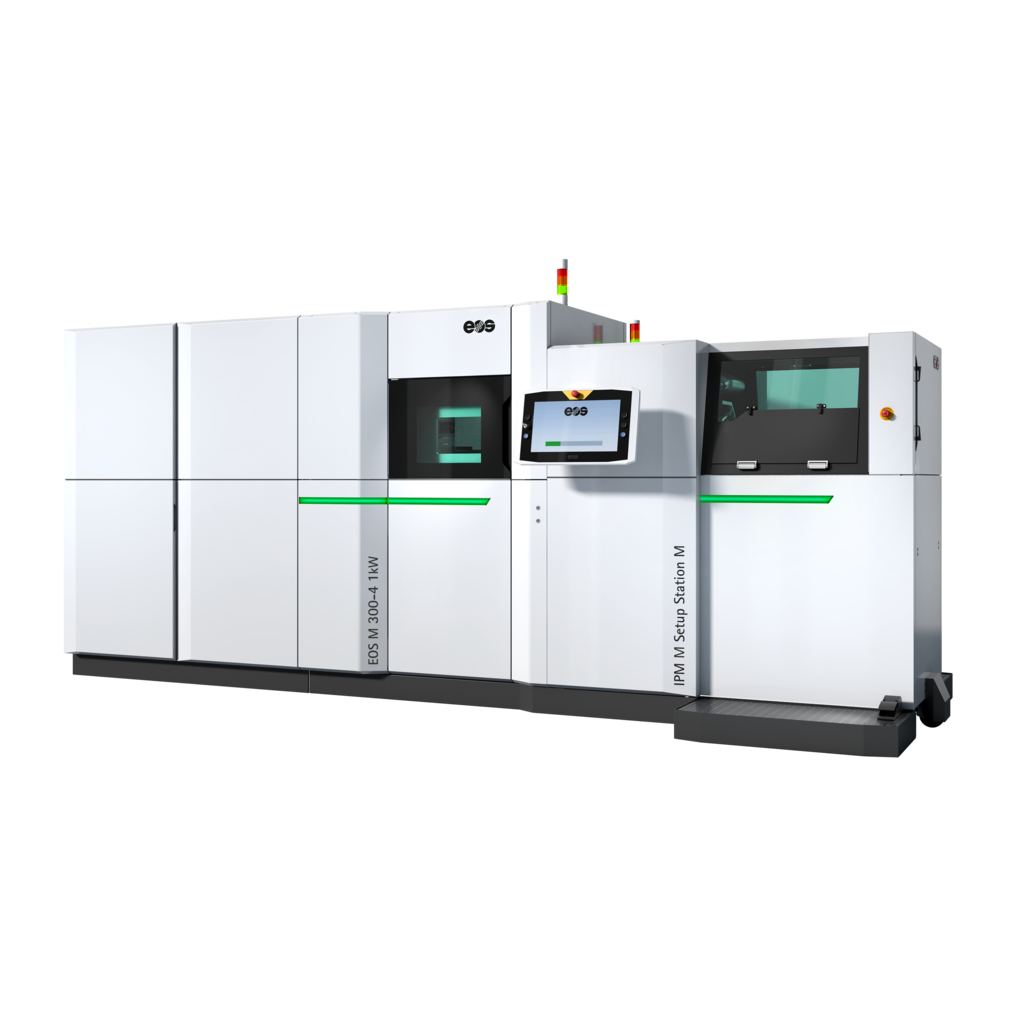

EOS M 300-4 1kW
  • Zuverlässige und reproduzierbare Qualität
  • Bis zu 10-fach höhere Produktivität bei Aluminium
  • Einfache Integration in Ihre Produktionsumgebung

EOS M 300-4 1kW

Bereitstellung von Leistung und Produktivität bei höchster Zuverlässigkeit, um die niedrigsten Kosten pro Teil in der Branche zu erzielen

Designed for industrial applications, the EOS M 300 Series offers multiple configuration options combined with safety and security features enabling digital Additive Manufacturing.
The EOS M 300-4 1kW is ideal for applications in aviation, energy, government & defense and mobility/transportation industries that leverage AlSi10Mg, CuCP. The platform offers the flexibility to choose the degree of automation that best suits your needs for an optimized workflow as well as the option to easily ramp-up as demand increases.

BELICHTUNGSMODUL

LASER
  • 4 x
    1 kW

4 precise 1kw lasers expose in a 300 x 300 mm square with each laser covering the entire area.

EOS M 300-4 1kW

TECHNISCHE DATEN

BAUVOLUMEN 300 x 300 x 435* mm (11,8 x 11,8 x 17,1 in)
LASERTYP Yb-Faser-Laser; 4 x 1000 W
FEINOPTIK 4 F-Theta-Linse; 4 Hochgeschwindigkeitsscanner
SCANGESCHWINDIGKEIT bis zu 7,0 m/s (23,0 ft/s)
FOKUSDURCHMESSER ca. 100 µm (0,00394 in)
STROMZUFUHR 3 x 63 A
STROMVERBRAUCH max. 19,6 kW / typisch 16,0 kW
DRUCKLUFTZUFUHR 7 Bar; 15 m³/h (102 psi; 530 ft³/h)

* Building height = Full height minus the height of the building platform (ranging from 35mm to 40mm)

MAßE / GEWICHT

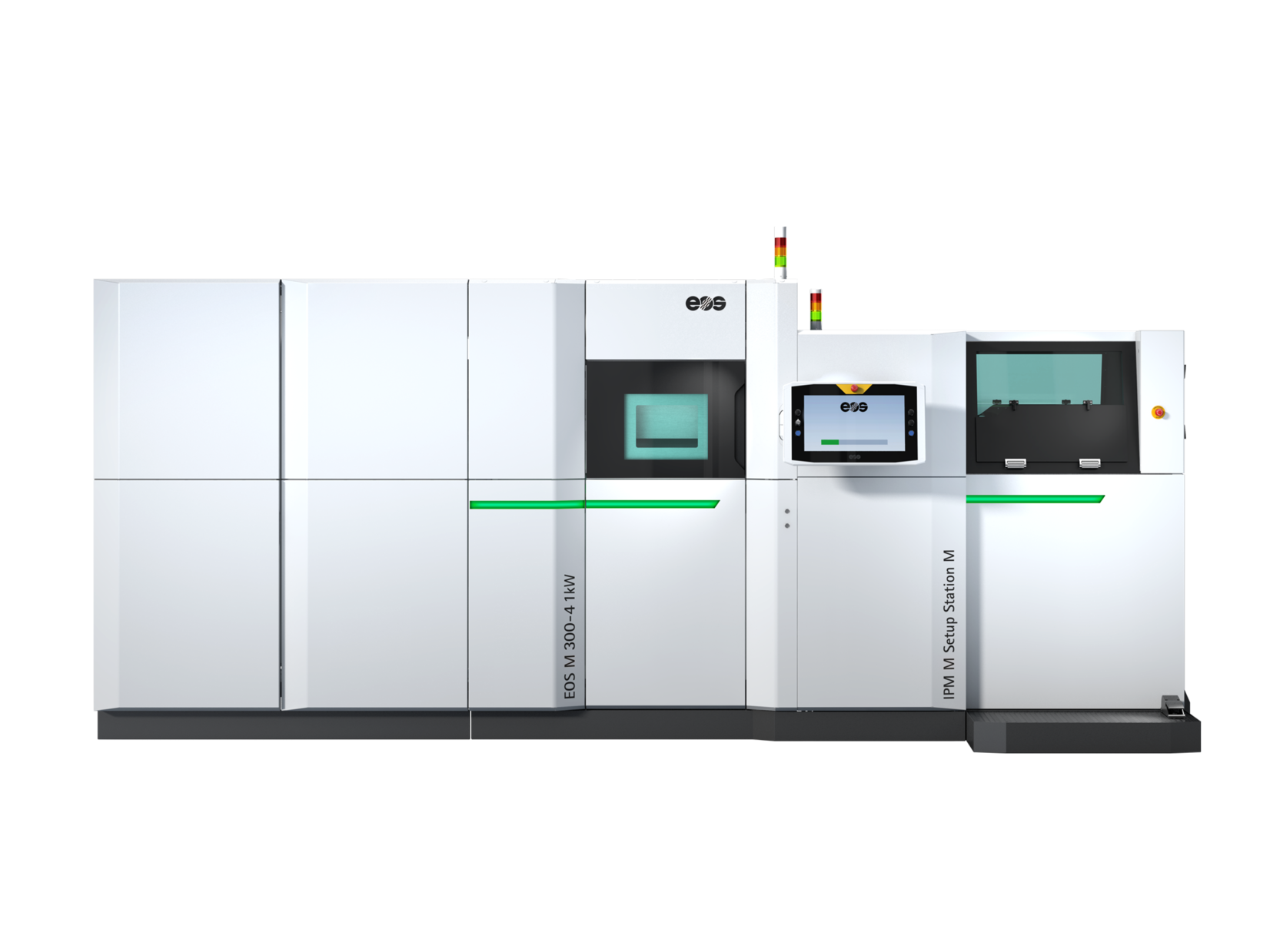

EOS M 300-4 1kW mit flexiblem Dosierer

Höhe: 2.340 mm / Gewicht ca. 5.500 kg

System
Arbeitsraum

MATERIALIEN & PROZESSE

EOS verfügt über eine außergewöhnliche Werkstoffkompetenz und ein umfassendes Portfolio an hochentwickelten Werkstoffen für die additive Fertigung. Unsere Werkstoffe, Systeme und Prozessparameter passen optimal zusammen. Mit den richtigen Werkstoffen können Sie die gewünschten Eigenschaftsprofile für Ihre Produkte bestmöglich realisieren
* Building height = Full height minus the height of the building platform (ranging from 35mm to 40mm)

EOS M 300-4 1kW

  • EOS Aluminium AlSi10Mg

  • EOS Copper CuCP

OPTIONALES ZUBEHÖR

IPCM M Extra

Manuelle und flexible Pulverbeförderung

IPM M Setup Station M

Komfortables gasdichtes Auspacken von zwei Seiten und unter Inertgas
