METAL SOLUTIONS
EOS M 400
  • Increased productivity thanks to 1000-watt laser power
  • Modular platform with process and set-up station
  • Build volume of 400 x 400 x 400 mm

EXPOSURE MODULE

LASERS
  • 1 x
    1 kW

The precise Yb fiber lasers with their fixed focus expose a square 400 x 400 mm area.

SOFTWARE

  • EOS BUILD / BUILD+

    EOS Build subscriptions offer enhanced EOSPRINT features for multiple users with flexible material management; Build+ adds more licenses, advanced materials, and training for up to 5 users.

  • EOS DATA INSIGHTS

    Data Insights offers unparalleled insights into machine performance — either individually or as a whole park of devices.

  • EOS SYSTEM SUITE

    EOS System Suite optimizes production by streamlining processes, integrating with MES and shop-floor IT systems, and generating detailed quality reports.

EOS M 400

TECHNICAL DATA

BUILD VOLUME 400 x 400 x 400* mm (15.7 x 15.7 x 15.7 in)
LASER TYPE Yb-fiber laser; 1 x 1000 W
PRECISION OPTICS 1 F-theta-lens(es); 1 High-speed scanner(s)
SCAN SPEED up to 7.0 m/s (23.0 ft./sec)
FOCUS DIAMETER approx. 90 µm (0.00354 in)
POWER SUPPLY 1 x 50 A
POWER CONSUMPTION max. 50.2 kW / typical 16.22 kW
COMPRESSED AIR SUPPLY 7 Bar; 20 m³/h (102 psi; 706 ft³/h)

* Height includes build plate

DIMENSIONS & WEIGHT

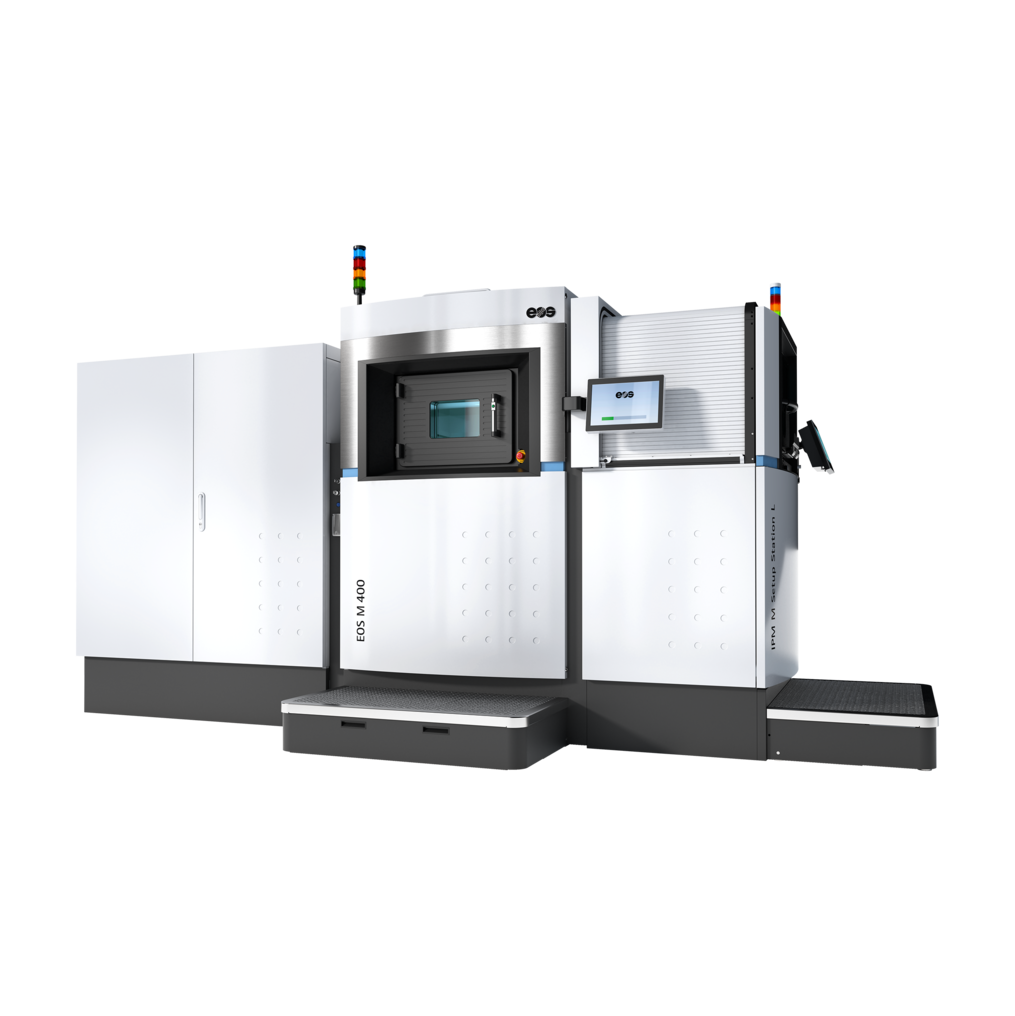

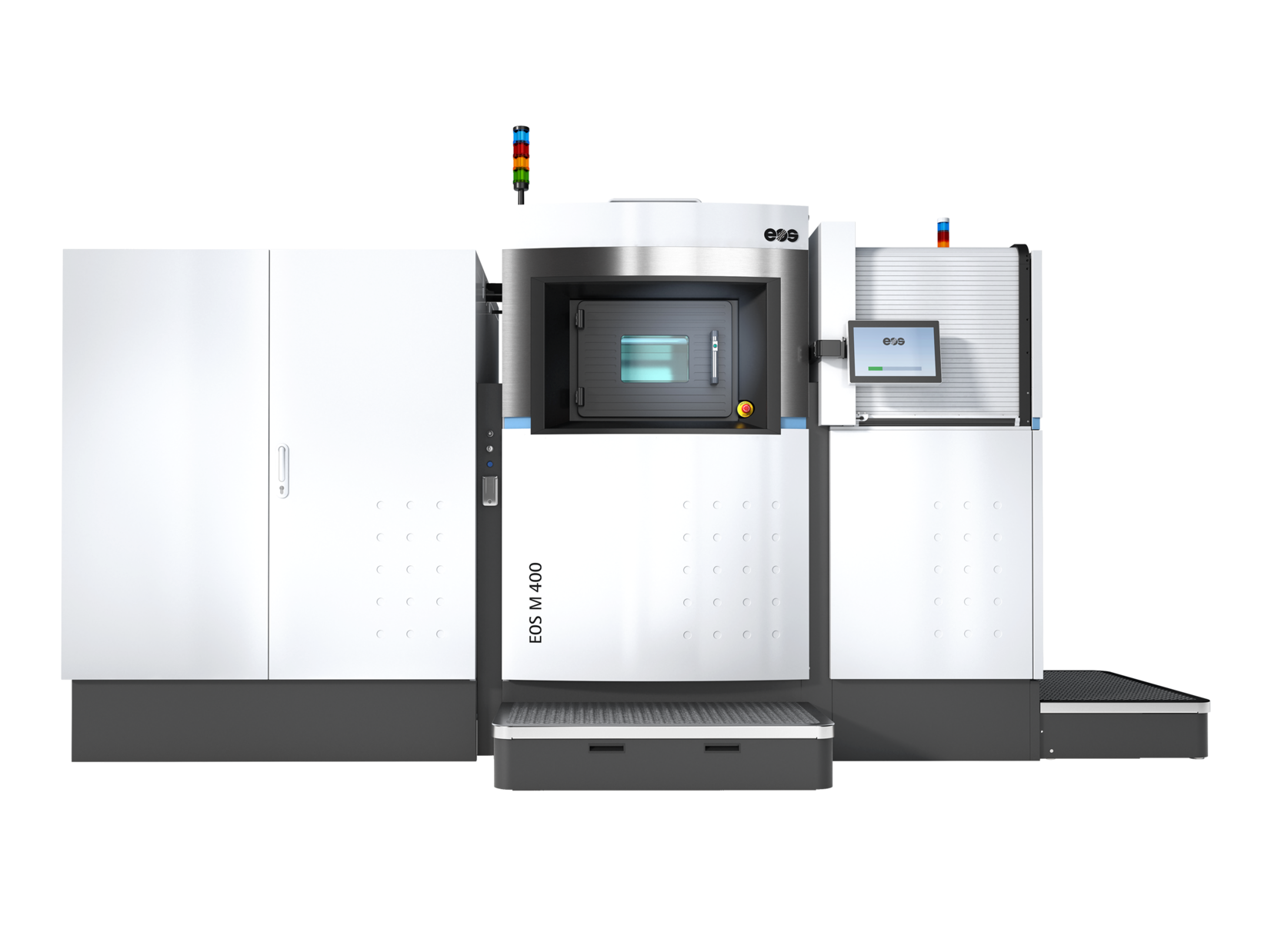

EOS M 400 with IPM M Setup Station L

Height: 2.340 mm / Weight approx. 4.635 kg

System
Workspace

EOS M 400

  • EOS Aluminium AlF357

  • EOS Aluminium AlSi10Mg

  • EOS Aluminium Al2139 AM

  • EOS CopperAlloy CuCrZr

  • EOS MaragingSteel MS1

  • EOS CopperAlloy CuNi30

  • EOS NickelAlloy IN718

  • EOS StainlessSteel 316L

  • EOS Titanium Ti64

  • EOS Titanium Ti64ELI

OPTIONAL ACCESSORIES

IPCM M Extra

Manual and flexible powder handling

IPCM M Pro

Semi-automated powder handling
