Process Data Sheet

EOS Aluminium Constellium CP1 for EOS M 290 | 60 µm

EOS M 290 - 60 µm - TRL 3

System Setup EOS M 290
EOS Material set AlCP1_060_M291
Software Requirements

EOSPRINT 2.13 or newer
The CP1 process is not automatically included in EOS Build Plans. Please reach out to your EOS contact.
Recoater Blade HSS (High Speed Steel)
Build Platform Temperature 125 °C
Nozzle EOS Grid Nozzle
Inert gas Argon
Sieve 90 µm
Additional Information
Layer Thickness 60 µm
Volume Rate 10.1 mm³/s

Chemical and Physical Properties of Parts

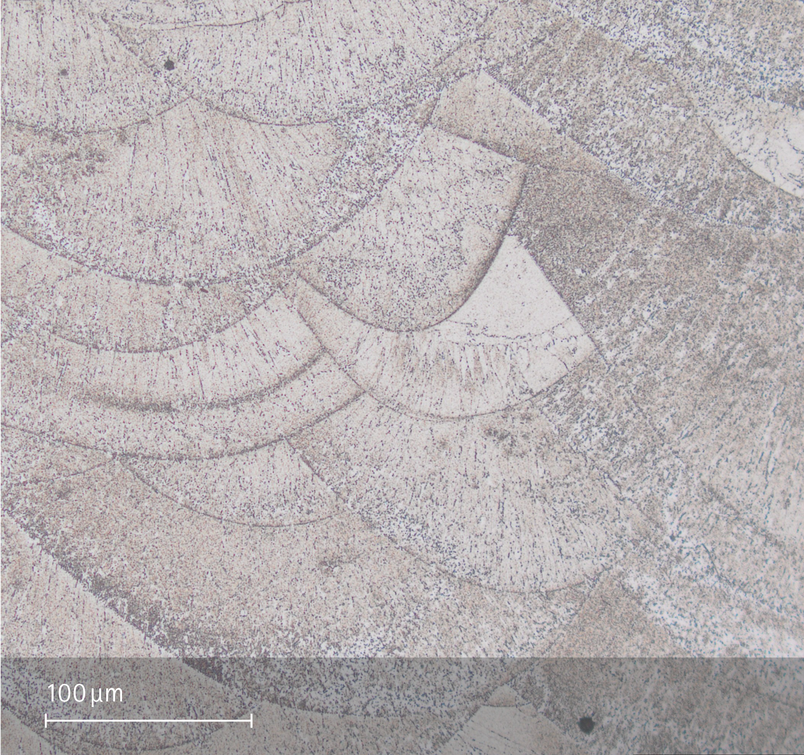

Microstructure of the Produced Parts

Defects Thickness Result Number of Samples
Average Defect Percentage 60 µm 0.4 % -
Density EN ISO 3369 Thickness Result Number of Samples
Average Density 60 µm ≥ 2.73 g/cm³ -

Mechanical Properties

Mechanical Properties Heat Treated

EN ISO 6892-1 Room Temperature | 60 µm Yield Strength [MPa] Tensile Strength [MPa] Elongation at Break A [%] Reduction of Area Z [%] Modulus of elasticity [GPa] Number of Samples
Vertical 300 340 10 - - -
Horizontal 300 340 12 - - -

4 hours at 400 °C
No careful control needed for heating or cooling.

Mechanical Properties As Manufactured

EN ISO 6892-1 Room Temperature | 60 µm Yield Strength [MPa] Tensile Strength [MPa] Elongation at Break A [%] Reduction of Area Z [%] Modulus of elasticity [GPa] Number of Samples
Vertical 140 200 18 - - -
Horizontal 150 200 19 - - -

Hardness

EN ISO 6506 Heat Treated
Value 95
Unit HBW 2.5/62.5
EN ISO 6506 As Manufactured
Value 55
Unit HBW 2.5/62.5

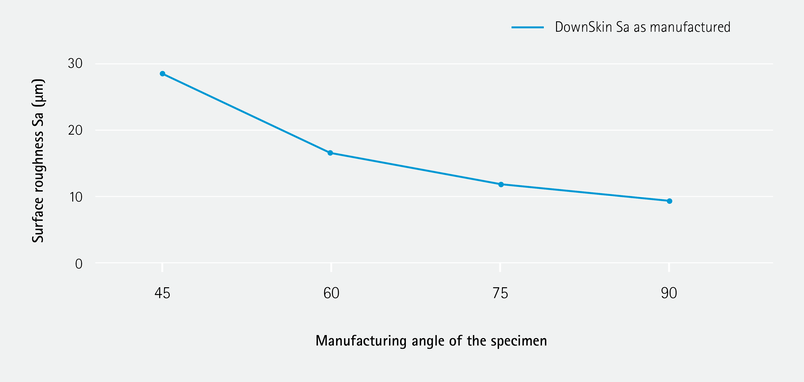

Surface Roughness

Electrical Conductivity

Orientation Typical Electrical Conductivity [%IACS]
As Manufactured | 60 µm | Vertical 28
As Manufactured | 60 µm | Horizontal 28
Orientation Typical Electrical Conductivity [%IACS]
Heat Treated | 60 µm | Vertical 46
Heat Treated | 60 µm | Horizontal 46

Coefficient of Thermal Expansion

Temperature
19*10-6/K 25 – 100 ºC
21*10-6/K 25 – 200 ºC
22*10-6/K 25 – 300 ºC
