EOS NickelAlloy 247 I General data
- - TRL 3
Process Information Metal
The mechanical properties of EOS NickelAlloy 247 may vary depending on the specific processing parameters and heat treatment used for the component manufacturing. The following data represents tensile properties typically achieveable from EOS NickelAlloy 247.
Microstructure of the Produced Parts
Mechanical Properties
Mechanical Properties HIP + Heat-treated
| EN ISO 6892-1 Room Temperature | | | Yield Strength [MPa] | Tensile Strength [MPa] | Elongation at Break A [%] | Reduction of Area Z [%] | Modulus of elasticity [GPa] | Number of Samples |
|---|---|---|---|---|---|---|
| Vertical | 920 | 1200 | 12 | 14 | - | - |
| Horizontal | 940 | 1250 | 7 | 9 | - | - |
Mechanical Properties Heat Treated
| EN ISO 6892-1 870°C | | | Yield Strength [MPa] | Tensile Strength [MPa] | Elongation at Break A [%] | Reduction of Area Z [%] | Modulus of elasticity [GPa] | Number of Samples |
|---|---|---|---|---|---|---|
| Vertical | 700 | 900 | 10 | 10 | - | - |
| Horizontal | 750 | 920 | 2 | 4 | - | - |
Stress Rupture Performance
| ASTM E139 | Stress [MPa] | Temperature [°C] | Time to Rupture [hrs] | Elongation [%] | RA [%] |
|---|---|---|---|---|---|
| Vertical | 380 | 870 | 158 | 14 | 14.5 |
| Horizontal | 380 | 870 | 17 | 0.85 | 4.1 |
The creep resistance of EOS NickelAlloy 247 may vary depending on the specific processing parameters and heat treatment used for the component manufacturing. The following data represents stress rupture test results typically achieveable from EOS NickelAlloy 247.

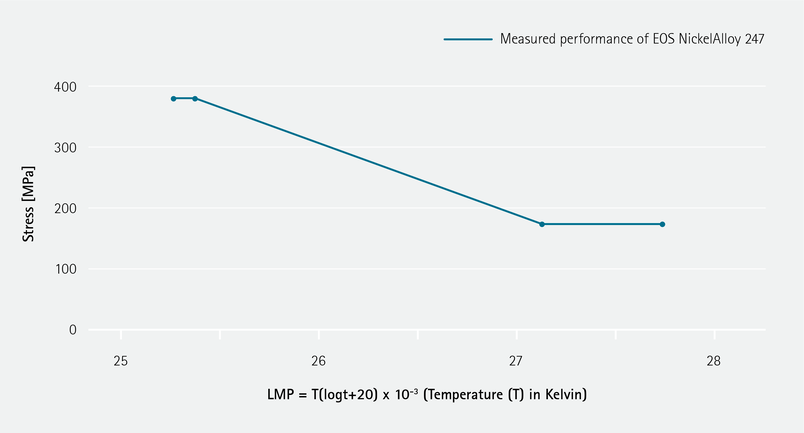

Stress rupture performance
The creep resistance of EOS NickelAlloy 247 may vary depending on the specific processing parameters and heat treatment used for the component manufacturing. The shown data represents stress rupture test results typically achieveable from EOS NickelAlloy 247.
