EOS MaragingSteel MS1

Material Data Sheet

EOS MaragingSteel MS1

Parts built in EOS MaragingSteel MS1 have a chemical composition corresponding to US classification 18% Ni Maraging 300, European 1.2709 and German X3NiCoMoTi 18-9-5. This kind of steel is characterized by having very good mechanical properties, and being easily heat-treatable using a simple thermal age-hardening process to obtain excellent hardness and strength. Parts built from EOS MaragingSteel MS1 are easily machinable after the building process and can be easily post-hardened to more then 50 HRC by age-hardening at 490 °C (914 °F) for 6 hours. In both as-built and age-hardened states the parts can be machined, spark-eroded, welded, micro shot-peened, polished and coated if required. Due to the layerwise building method, the parts have a certain anisotropy, which can be reduced or removed by appropriate heat treatment.

MAIN CHARACTERISTICS

  • The parts are easily post-hardened to more than 50 HRC
  • The parts can be machined, spark-eroded, welded, micro shot-peened, polished and coated
  • Chemical composition corresponding to 18Ni300 and M300

Download Process Data Sheet (PDF)

TYPICAL APPLICATIONS

  • Injection molding tools & inserts
  • Mechanical engineering parts

The EOS Quality Triangle

EOS uses an approach that is unique in the AM industry, taking each of the three central technical elements of the production process into account: the system, the material and the process. The data resulting from each combination is assigned a Technology Readiness Level (TRL) which makes the expected performance and production capability of the solution transparent.

EOS incorporates these TRLs into the following two categories:

  • Premium products (TRL 7-9): offer highly validated data, proven capability and reproducible part properties.
  • Core products (TRL 3 and 5): enable early customer access to newest technology still under development and are therefore less mature with less data.

All of the data stated in this material data sheet is produced according to EOS Quality Management System and international standards
EOS 3D Printing Solutions Quality Triangle

POWDER PROPERTIES

Parts built in EOS MaragingSteel MS1 have a chemical composition following US classification 18% Ni Maraging 300, European 1.2709 and German X3NiCoMoTi 18-9-5.

Powder Chemical Composition (wt.-%)

Element Min. Max.
Ni 17 19
Co 8.5 9.5
Mo 4.5 5.2
Ti 0.6 0.8
Al 0.05 0.15
Cr - 0.5
Cu - 0.5
C - 0.03
Mn - 0.1
Si - 0.1
P - 0.01
S - 0.01

Powder Particle Size

GENERIC PARTICLE SIZE DISTRIBUTION 15 - 65 μm

HEAT TREATMENT

Description

EOS MaragingSteel can be heat treated to match various needs of different applications. The two step heat treatment can be performed under vacuum or inert gas atmosphere. First step is solution annealing to minimize amount of austenite in the martensitic matrix. The needed hardness and strength is achieved through aging treatment where hardening takes place through forming of intermetallic phases and precipitates

Steps

Solution annealing: 2 h at 940 °C (±10 °C) measured from the part followed by rapid air cooling to room temperature (below 32 °C). Cooling rate 5-60 °C/min. Reaching room temperature before starting aging treatment is required to achieve desired microstructure.

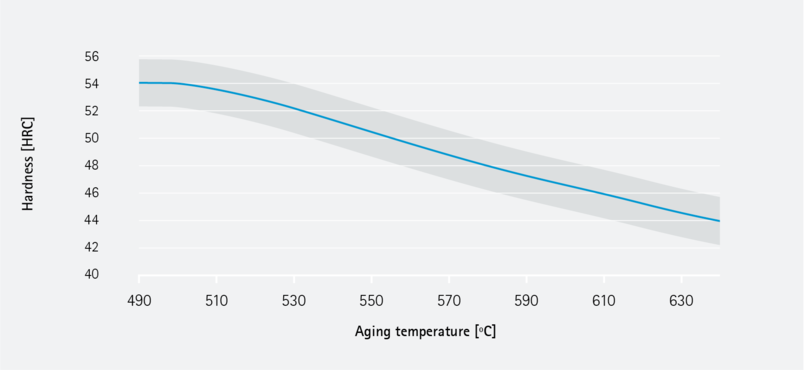

Aging: For peak hardness of 54 HRC age 6 h at 490 °C (±10 °C) measured from the part followed by air cooling. Mechanical properties presented in this document achieved through this aging procedure. For lower hardness and strength choose aging temperature according to the graph below
