METAL SOLUTIONS
EOS NickelAlloy C22
Material Data Sheet
EOS NickelAlloy C22
Nickel-chromium-molybdenum alloy with high corrosion resistance
EOS NickelAlloy C22 is a nickel-chromium-molybdenum alloy with high corrosion resistance. EOS C22 corresponds to ASTM B 574 (UNS N 06022). C22 is highly resistant to pitting corrosion, crevice corrosion and stress corrosion cracking.
- High strength
- High toughness
- High corrosion resistance
- Chemical processing components
- Food processing
The EOS Quality Triangle
EOS uses an approach that is unique in the AM industry, taking each of the three central technical elements of the production process into account: the system, the material and the process. The data resulting from each combination is assigned a Technology Readiness Level (TRL) which makes the expected performance and production capability of the solution transparent.
EOS incorporates these TRLs into the following two categories:
All of the data stated in this material data sheet is produced according to EOS Quality Management System and international standards
EOS incorporates these TRLs into the following two categories:
- Premium products (TRL 7-9): offer highly validated data, proven capability and reproducible part properties.
- Core products (TRL 3 and 5): enable early customer access to newest technology still under development and are therefore less mature with less data.
All of the data stated in this material data sheet is produced according to EOS Quality Management System and international standards
POWDER PROPERTIES
The chemical composition of EOS NickelAlloy C22 is in compliance with ASTM B 574 (UNS N 06022).

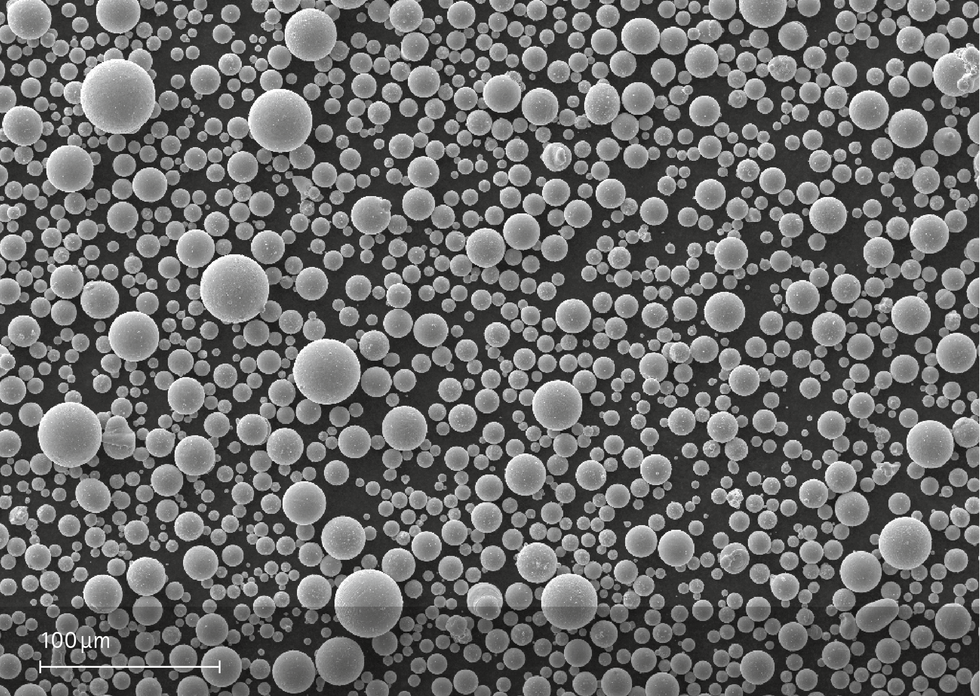

Powder Particle Size
| GENERIC PARTICLE SIZE DISTRIBUTION | 15 - 53 μm | |
|---|---|---|
HEAT TREATMENT
EOS NickelAlloy C22 heat treatment is a solution anneal at 1200 °C for 2 hours followed by water quench or rapid gas cooling (10 bar or higher).
