METAL SOLUTIONS

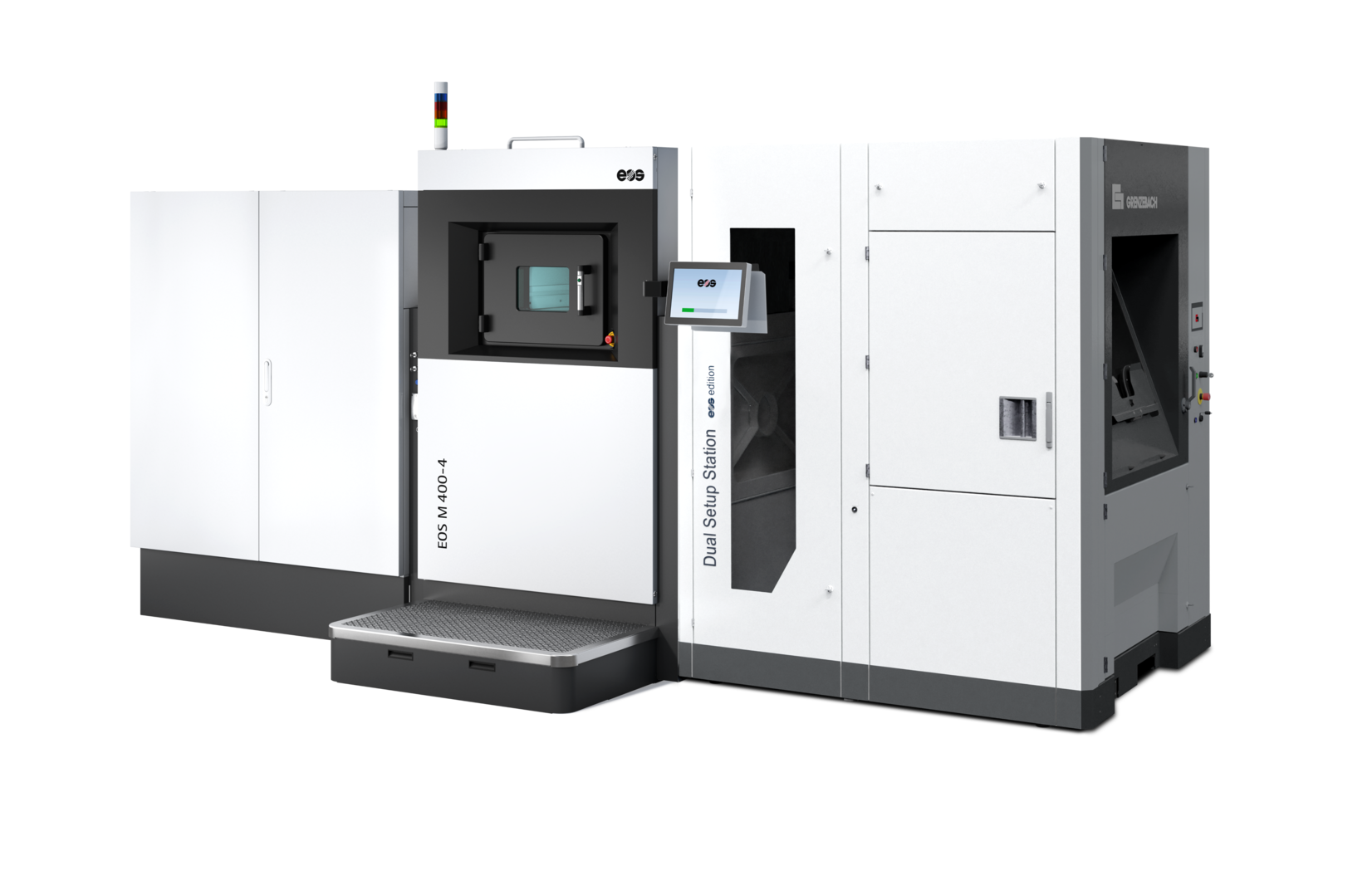

EOS M 400-4
  • Up to 4x more productivity
  • Four precise 400-watt fiber lasers
  • Build volume of 400 x 400 x 400 mm

EXPOSURE MODULE

LASERS
  • 4 x
    400 W

The precise Yb fiber lasers with their fixed focus expose a square 400 x 400 mm area.

SOFTWARE

  • EOS BUILD

    EOS Build subscriptions offer enhanced EOSPRINT features for multiple users with flexible material management; Build+ adds more licenses, advanced materials, and training for up to 5 users.

  • EOS SMART MONITORING

    EOS Smart Monitoring utilizes Exposure OT for comprehensive build monitoring and pairs it with Smart Fusion to regulate heat within set parameters in collaboration with EOS Build/Build+.

  • EOS SYSTEM SUITE

    EOS System Suite optimizes production by streamlining processes, integrating with MES and shop-floor IT systems, and generating detailed quality reports.

EOS M 400-4

TECHNICAL DATA

BUILD VOLUME 400 x 400 x 400* mm (15.7 x 15.7 x 15.7 in)
LASER TYPE Yb-fiber laser; 4 x 400 W
PRECISION OPTICS 4 F-theta-lens(es); 4 High-speed scanner(s)
SCAN SPEED up to 7.0 m/s (23.0 ft/s)
FOCUS DIAMETER approx. 90 µm (0.00354 in)
POWER SUPPLY 3 x 50 A
POWER CONSUMPTION max. 45.0 kW / typical 22.0 kW
COMPRESSED AIR SUPPLY 7 Bar; 20 m³/h (102 psi; 706 ft³/h)

* M 290 Series: including build platform and application dependent. M 300 and M 400 Series: including build platform.

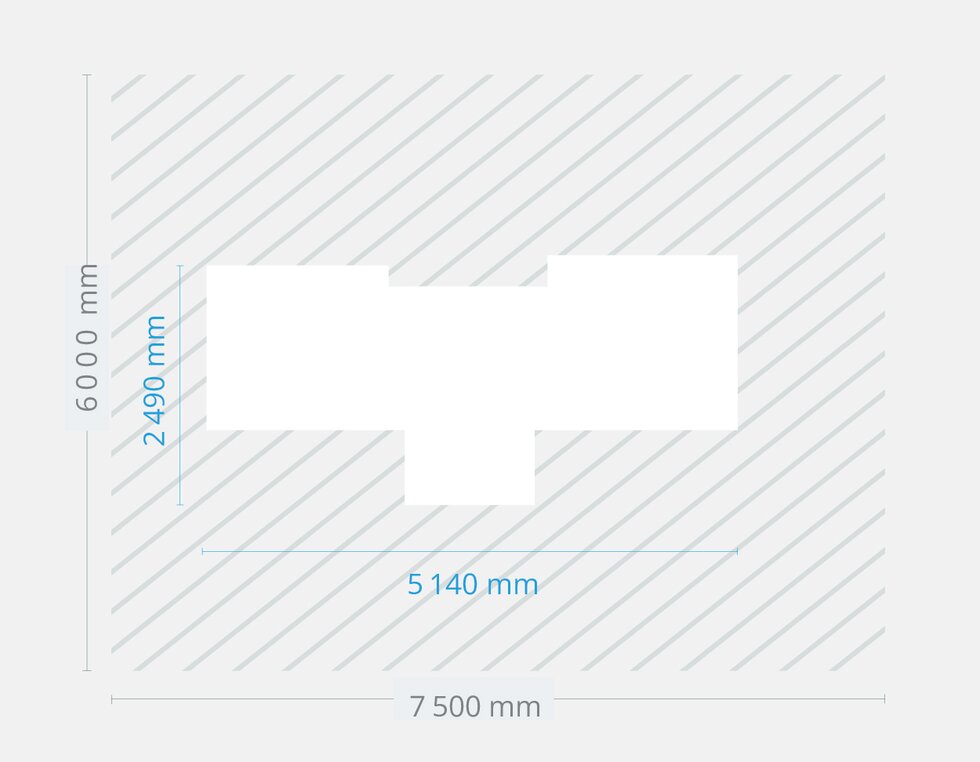

** For machine dimensions, please contact us

MATERIALS & PROCESSES

EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products

EOS M 400-4

  • EOS Aluminium AlSi10Mg

  • EOS Aluminium Al2139 AM

  • EOS CaseHardeningSteel 20MnCr5

  • EOS MaragingSteel MS1

  • EOS Nickel NiCP

  • EOS NickelAlloy HAYNES® 282®

  • EOS NickelAlloy HX

  • EOS NickelAlloy IN625

  • EOS NickelAlloy IN718

  • EOS NickelAlloy IN718 API

  • EOS NickelAlloy IN939

  • EOS NickelAlloy K500

  • EOS StainlessSteel 17-4PH

  • EOS StainlessSteel 316L-4404

  • EOS StainlessSteel 316L-4441

  • EOS Titanium Ti64

  • EOS Titanium Ti64 Grade 23

  • EOS Titanium Ti64 Grade 5

  • EOS Titanium TiCP Grade 2

OPTIONAL ACCESSORIES

IPCM M Extra

Manual and flexible powder handling

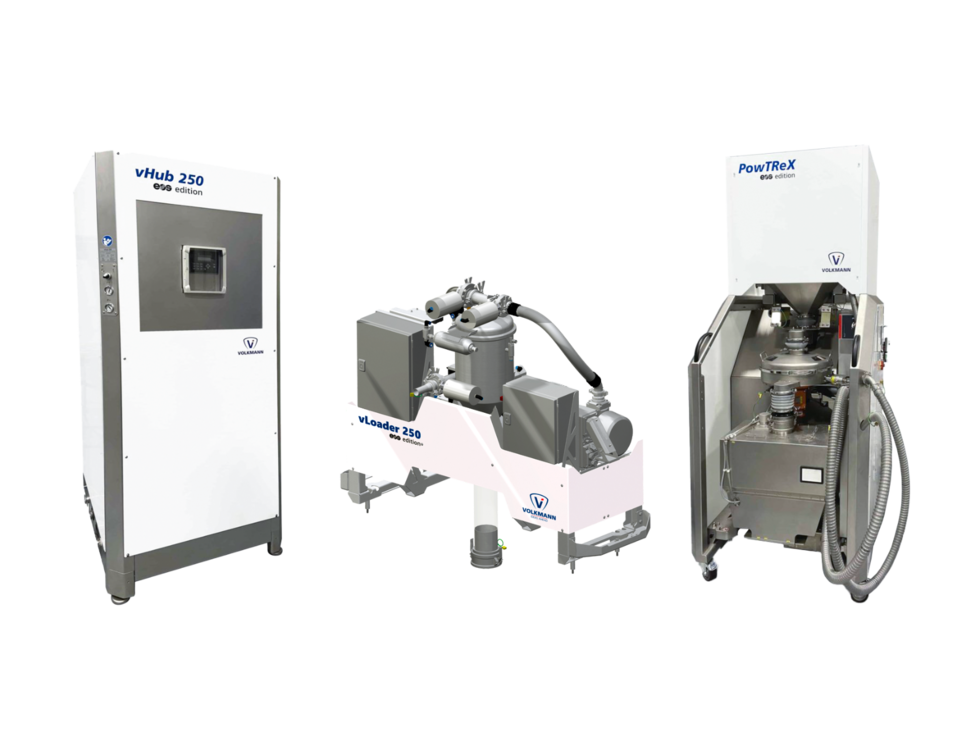

Volkmann Automated Powder Handling Solutions - EOS Edition

Automated closed loop powder handling solution that convey, sieve, and load metal materials
