METAL SOLUTIONS
EOS
M4 ONYX
- Up to 50% higher productivity
- 6x 400-watt fiber lasers
- +25% more build volume of 450 x 450 x 400 mm
EXPOSURE MODULE
LASERS
- 6 x
400 W
The Yb fiber lasers with their fixed focus expose a square 450 x 450 mm area.

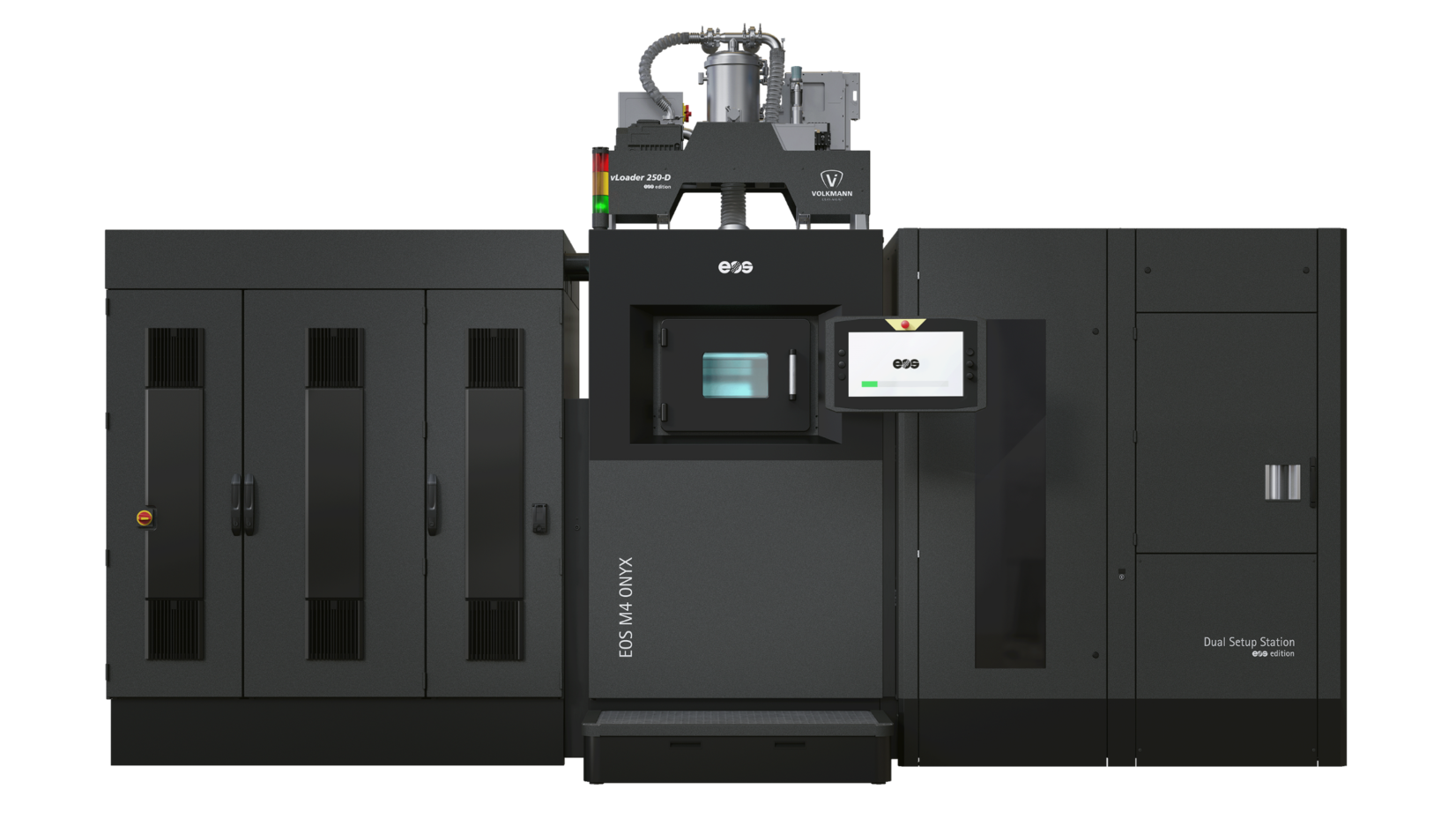

EOS M4 ONYX
TECHNICAL DATA
| BUILD VOLUME | 450 x 450 x 400* mm (17.7 x 17.7 x 15.7 in) |
| LASER TYPE | Yb-fiber laser; 6 x 400 W |
| PRECISION OPTICS | 6 F-theta-lens(es); 6 High-speed scanner(s) |
| SCAN SPEED | up to 7.0 m/s (23.0 ft/s) |
| FOCUS DIAMETER | approx. 90 µm (0.00354 in) |
| POWER SUPPLY | 3 x 54 A |
| POWER CONSUMPTION | max. 45.0 kW / typical 29.0 kW |
| COMPRESSED AIR SUPPLY | 7 Bar; 20 m³/h (102 psi; 706 ft³/h) |
* M 290 Series: including build platform and application dependent. M 300, M 400 & M4 ONYX Series: including build platform.
** For machine dimensions, please contact us
MATERIALS & PROCESSES
EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products
OPTIONAL ACCESSORIES

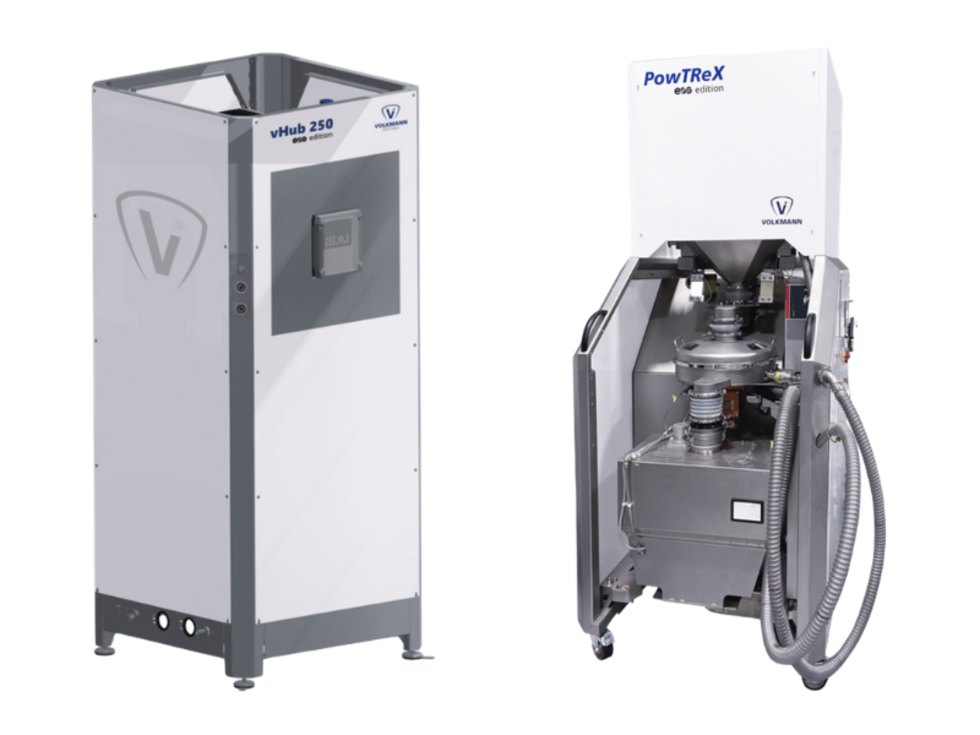

Simplified Volkmann Automated Powder Handling Solutions - EOS Edition
Automated closed loop powder handling solution that convey, sieve, and load metal materials
