Copper
EOS

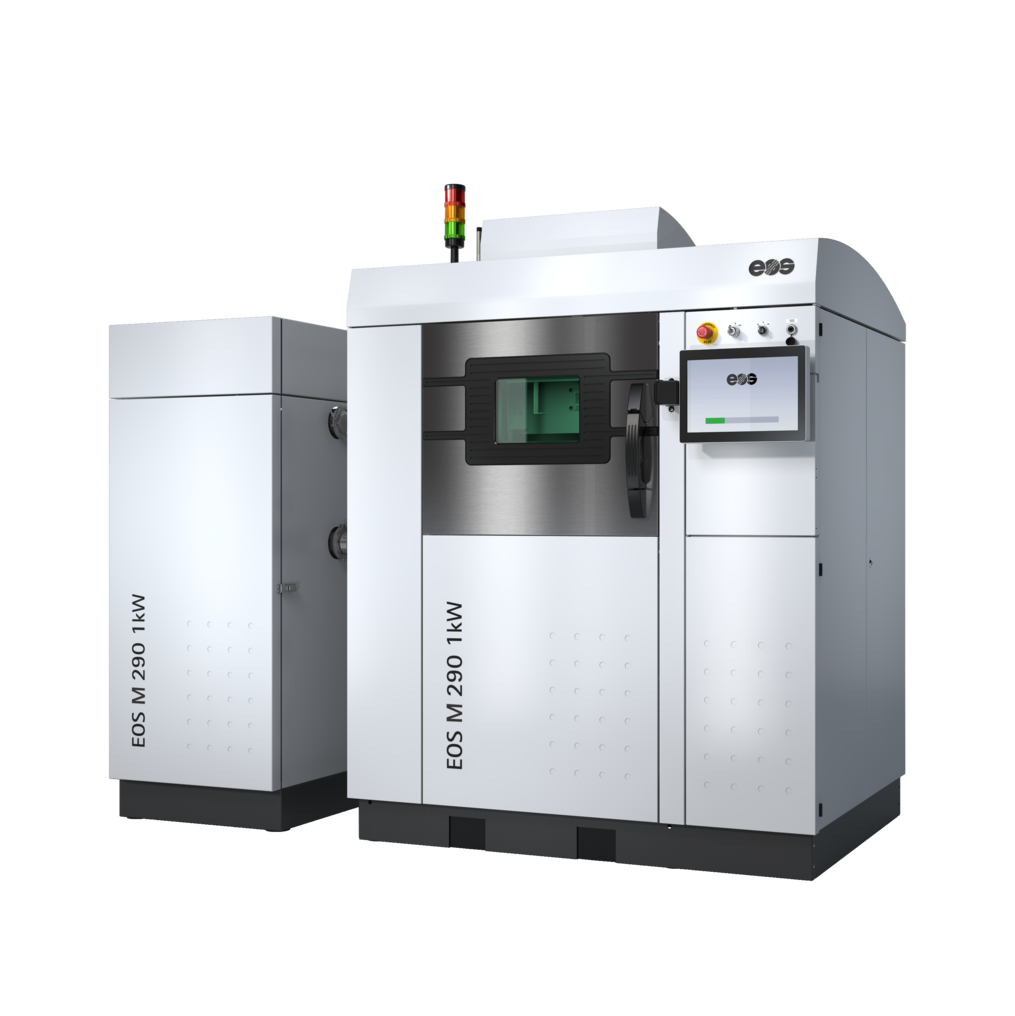

M 290 1kW
M 290 1kW
Featuring a one-kilowatt laser with the flexible, mid-size frame to deliver the power needed to maximize production of industrial applications for copper and more materials coming.
Engineered specifically for materials and applications that demand higher intensity
Variant of our robust industry standard, equipped with a 1 kW laser to handle the most challenging copper applications.
Technical Data
EOS
M 290 1kW
| Build Volume | 250 x 250 x 325 mm (9.8 x 9.8 x 12.8 in) |
| Laser Type | Yb-fiber laser; 1 x 1000 W |
| Presicion Optics | 1 F-theta-lens(es); 1 High-speed scanner(s) |
| Scan Speed | up to 7.0 m/s (23.0 ft/s) |
| Focus Diameter | approx. 90 µm (0.0036 in) |
| Compressed Air Supply | 7 Bar; 27.8 m³/h (102 psi; 982 ft³/h) |
| Machine Dimensions | 2500 x 1300 x 2190 mm (98.4 x 51.2 x 86.2 in) |
| Recommended Installation Space | min. 4800 x 3600 x 2900 mm (189.0 x 141.7 x 114.2 in) |
| Weight | approx. 1250 kg (2756 lbs) |
Materials & Processes
The EOS M 290 1kW has the most extensive range of validated materials and processes on the market. EOS metal materials are designed specifically for DMLS and are quality controlled. EOS processes are validated ensuring consistent and repeatable part quality. Explore below which metal materials and processes are compatible with the EOS M 290 1kW.
Get Inspired
EOS Copper Materials
Overview
Copper 3D printing is one of the newest areas of additive manufacturing - and one of the most growing. Explore the EOS Copper Materials and how they can support your application
Design for AM Metal
Training | Metal AM
The design stage is a crucial component of the additive manufacturing process chain. Without a good design, the outcome of the subsequent stages is uncertain.
A Disruptive Innovation of Thermal Management
Whitepaper | THEsys
Reinventing a high-performance CPU cooler with additive manufacturing.
Learn more about how to achieve excellent thermal management with restricted space.
Software Solutions that Scale to Your Needs
Explore our EOS Software plans that support you in your AM journey from data preparation to real-time optimization. With our flexible subscription plans you can unlock the full potential of your EOS Metal Solution.
EOS Build & Build+
CAM software for optimizing and creating build jobs for 3D printing, fullly integrated with Materialise Magics, Siemens NX and other software.
EOS Data Insights
Production monitoring and automation software makes it possible to take advantage of all your machine and production data in real time.
EOS System Suite
Countless additive manufacturing possibilities - in one customizable software package.
EOS Technical Service
From getting started to sustainable success
We always focus on your success. From a certified start in the 3D printing process to qualified system maintenance and globally available support with a convenient service portal which provides you with information around your machine and service tickets 24/7.
Pick the Service Plan that fits best for your needs and enjoy the option for remote service availabel for many of our solutions. Our EOS SystemCare Program is tailored to your specific requirements.
