EOS
M 400-4

The Ultra-Fast Four-Laser System

System Data Sheet
Key Features

Ultra-Fast, Ultra-Productive: Our Flagship Four-Laser Machine

With four 400-watt lasers and a 400 x 400 x 400 mm build volume, the EOS M 400-4 is the ultimate productivity platform for industrial applications.

Productivity

With a build volume of 400 x 400 x 400 mm and four lasers, the EOS M 400-4 platform achieves up to four-times higher productivity, making it perfect for industrial applications. Four precise 400-watt fiber lasers work over an area of 250 x 250 mm each, with 50 mm overlap.

Automation

With its intuitive user interface, flexible software tools and diverse accessories, the system meets every usage requirement of an industrial production environment. Highly automated procedures and processes guarantee ease of operation.

Quality & Versatility

A broad portfolio of materials is available, from light metals to stainless steel, tool steels and super alloys. Any process from the EOS M 290 can be transferred to the EOS M 400-4 to achieve equivalent part properties.

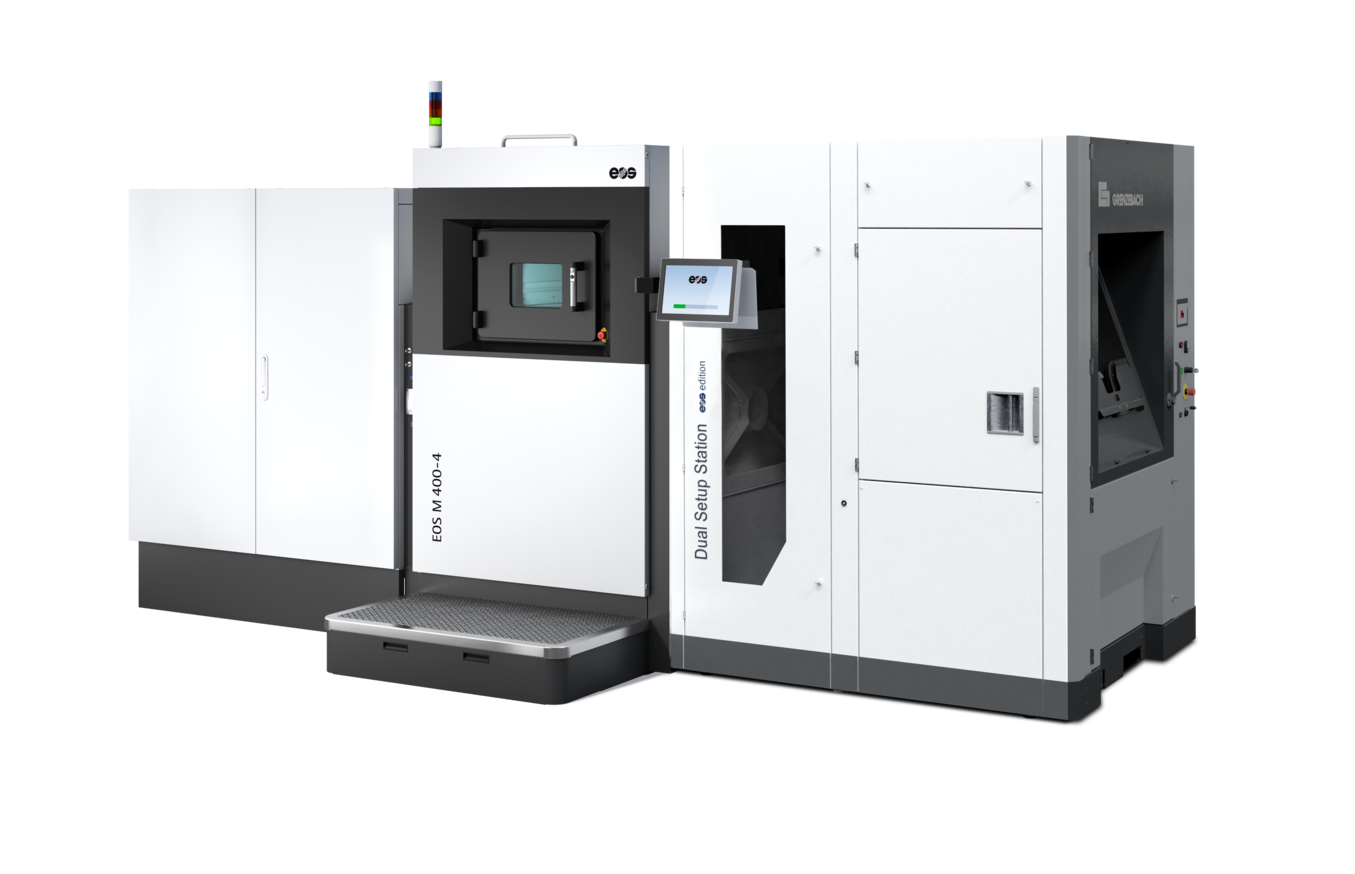

The ultra-fast quad-laser 3D printing system for metal parts EOS M 400-4

Technical Data
Technical Data
Build Volume 400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)
Laser Type Yb-fiber laser; 4 x 400 W
Presicion Optics 4 F-theta-lens(es); 4 High-speed scanner(s)
Scan Speed up to 7.0 m/s (23.0 ft/s)
Focus Diameter approx. 100 µm (0.00394 in)
Power Supply 3 x 50 A
Power Consumption max. 45.0 kW / typical 22.0 kW
Compressed Air Supply 7 Bar; 20 m³/h (102 psi; 706 ft³/h)
Machine Dimensions 4181 x 1613 x 2355 mm (164.6 x 63.5 x 92.7 in)
Recommended Installation Space min. 6500 x 6000 x 3300 mm (255.9 x 236.2 x 129.9 in)
Weight approx. 4835 kg (10659 lbs)
Software EOS BUILD / BUILD+ , EOS SMART MONITORING , EOS DATA INSIGHTS , EOS SYSTEM SUITE
Materials & Processes

Materials & Processes for EOS M 400-4



A broad portfolio of materials is available for the EOS M 400-4, from light metals to stainless steel, tool steels and super-alloys. Any process from the EOS M 290 can be transferred to the EOS M 400-4 to achieve equivalent part properties.  Explore compatible materials and processes below.
