EOS

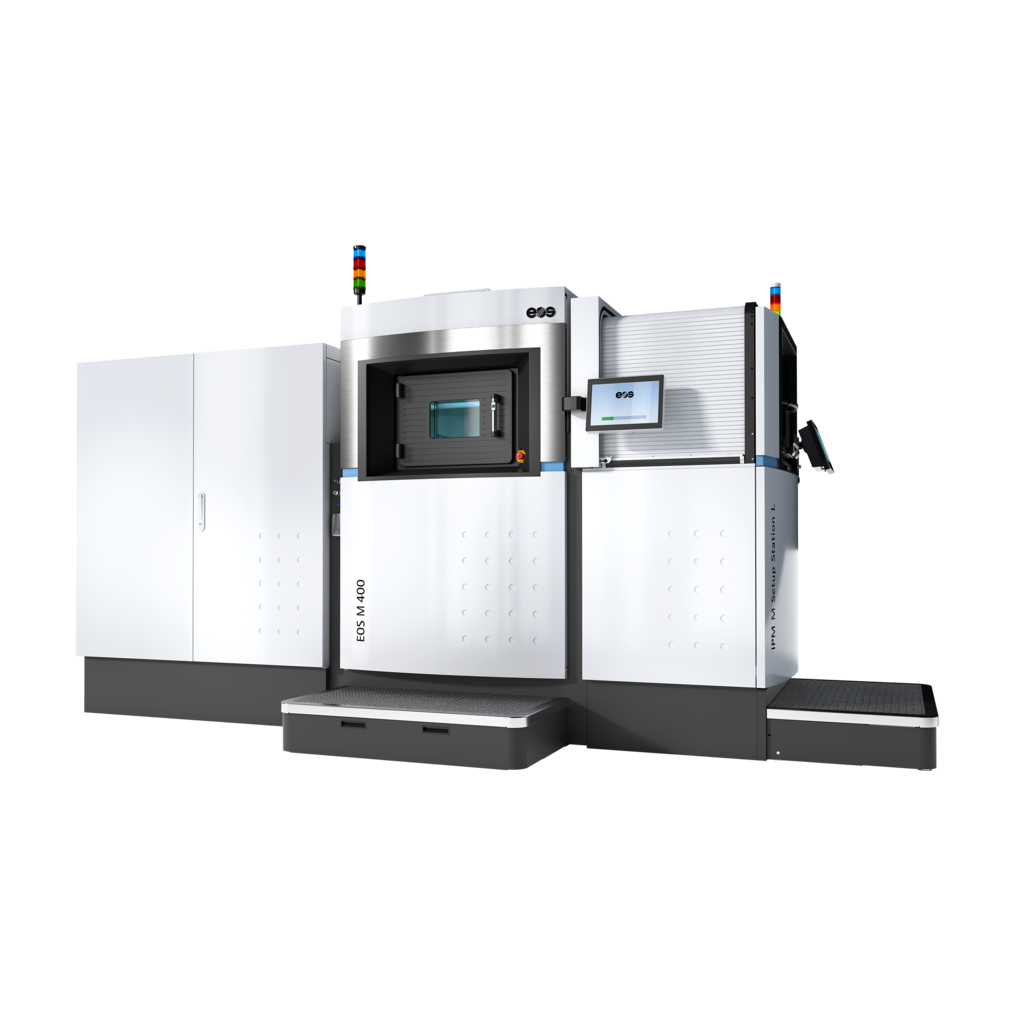

M 400

Proven DMLS Quality for Industrial Production

System Data Sheet
Key Features

Exceptional Quality at High Volume

Ideal for serial manufacturing of large metal parts, the EOS M 400 delivers repeatable excellence.

Highly Productive

1000-watt laser power increases productivity with higher build rates and thicker layers. Ideal for serial manufacturing of large metal parts.

Easy to Use

Coating both sides with powder material reduces production downtime. A circulating air filtering system with automatic cleaning means fewer filter changes and longer service life.

Broad Portfolio of Materials

A comprehensive collection of materials is available, from light metals to stainless steel, tool steels and super alloys.

Technical Data
Technical Data
Build Volume 400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)
Laser Type Yb-fiber laser; 1 x 1000 W
Presicion Optics 1 F-theta-lens(es); 1 High-speed scanner(s)
Scan Speed up to 7.0 m/s (23.0 ft/s)
Focus Diameter approx. 90 µm (0.00354 in)
Power Supply 1 x 50 A
Power Consumption max. 50.2 kW / typical 16.2 kW
Compressed Air Supply 7 Bar; 20 m³/h (102 psi; 706 ft³/h)
Machine Dimensions 4181 x 1613 x 2355 mm (164.6 x 63.5 x 92.7 in)
Recommended Installation Space min. 6500 x 6000 x 3300 mm (255.9 x 236.2 x 129.9 in)
Weight approx. 4635 kg (10218 lbs)
Software EOS BUILD / BUILD+ , EOS DATA INSIGHTS , EOS SYSTEM SUITE
Materials & Processes

Materials & Processes for EOS M 400

A broad portfolio of materials is available for EOS M 400 - from light metals to stainless steel, tool steels and super-alloys.  Browse compatible materials and processes below.
