EOS
M 300-4

Reliable DMLS Quality to meet your production needs.

System Data Sheet
Key Features

Highly Productive, Highly Scalable, Ready for Industrial Production

Increase productivity by up to 10x with the incredibly flexible EOS M 300-4.

Automation

The EOS M 300-4 enables flexible adaptation to all individual requirements through various degrees of automation, helping to ensure an optimized workflow.

Consistent Quality

The exceptional laser and performance stability ensures consistent part quality over the entire build space, including full coverage of overlaps.

Productivity

Up to four precision fiber lasers cover the entire 300 x 300 mm area, with full field overlap.

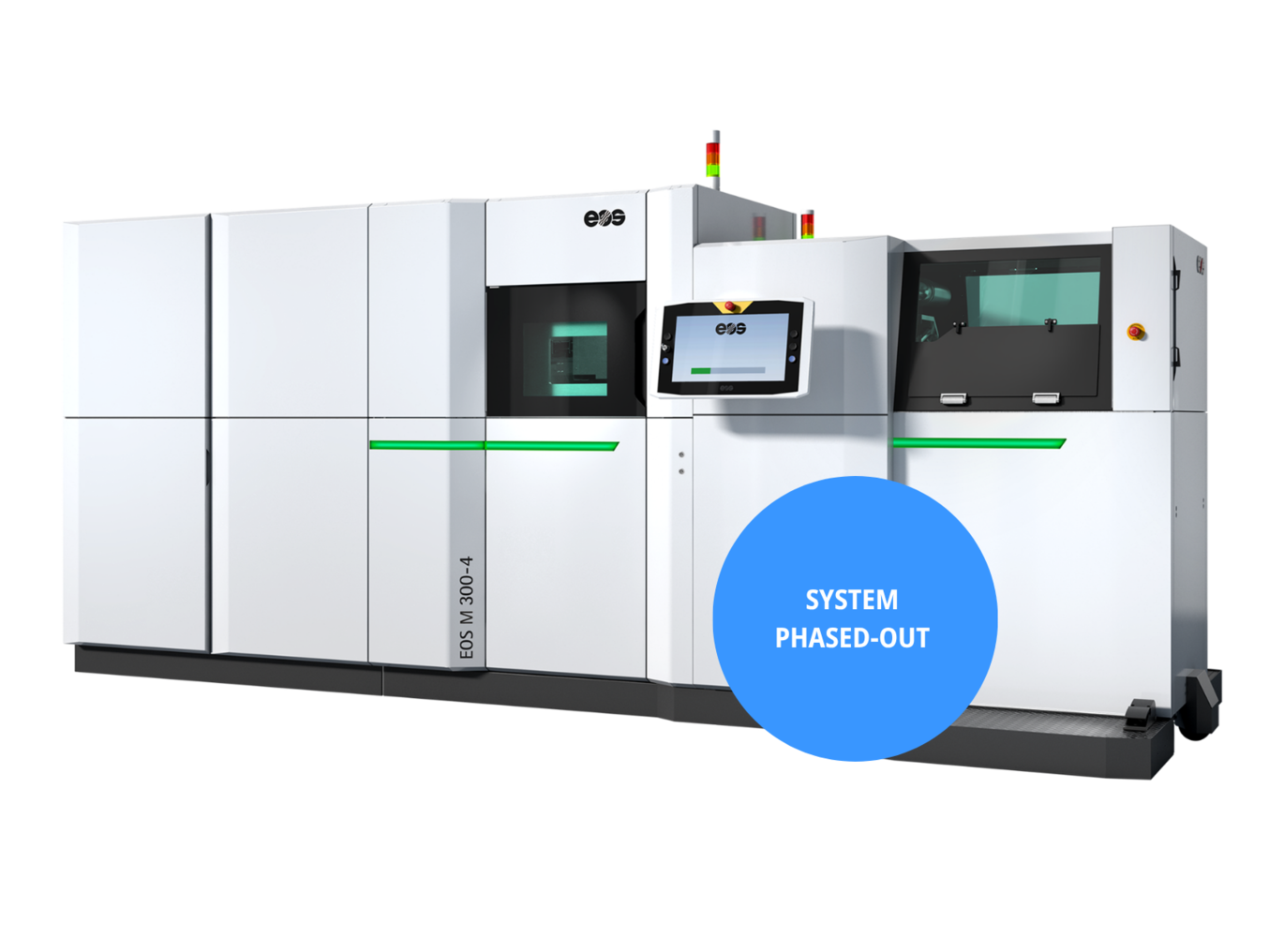

EOS M 300-4 Industrial 3D printer for serial production of metal parts

Technical Data
Technical Data
Build Volume 300 x 300 x 400 mm (11.8 x 11.8 x 15.7 in)
Laser Type Yb-fiber laser; 4 x 400 W
Presicion Optics 4 F-theta-lens(es); 4 High-speed scanner(s)
Scan Speed up to 7.0 m/s (23.0 ft/s)
Focus Diameter approx. 100 µm (0.00394 in)
Power Supply 3 x 63 A
Power Consumption max. 19.6 kW / typical 16.0 kW
Compressed Air Supply 7 Bar; 15 m³/h (102 psi; 530 ft³/h)
Machine Dimensions 5221 x 2680 x 2340 mm (205.6 x 105.5 x 92.1 in)
Recommended Installation Space min. 8800 x 5200 x 3500 mm (346.5 x 204.7 x 137.8 in)
Weight approx. 5500 kg (12125 lbs)
Software EOS BUILD / BUILD+ , EOS SMART MONITORING , EOS DATA INSIGHTS , EOS SYSTEM SUITE
Materials & Processes

Materials & Processes for EOS M 300-4

EOS metal materials and processes are specially developed for DMLS and undergo strict quality assurance.  Explore below which metal materials and processes are compatible with the EOS M 300-4 and find the right solution for your application.
